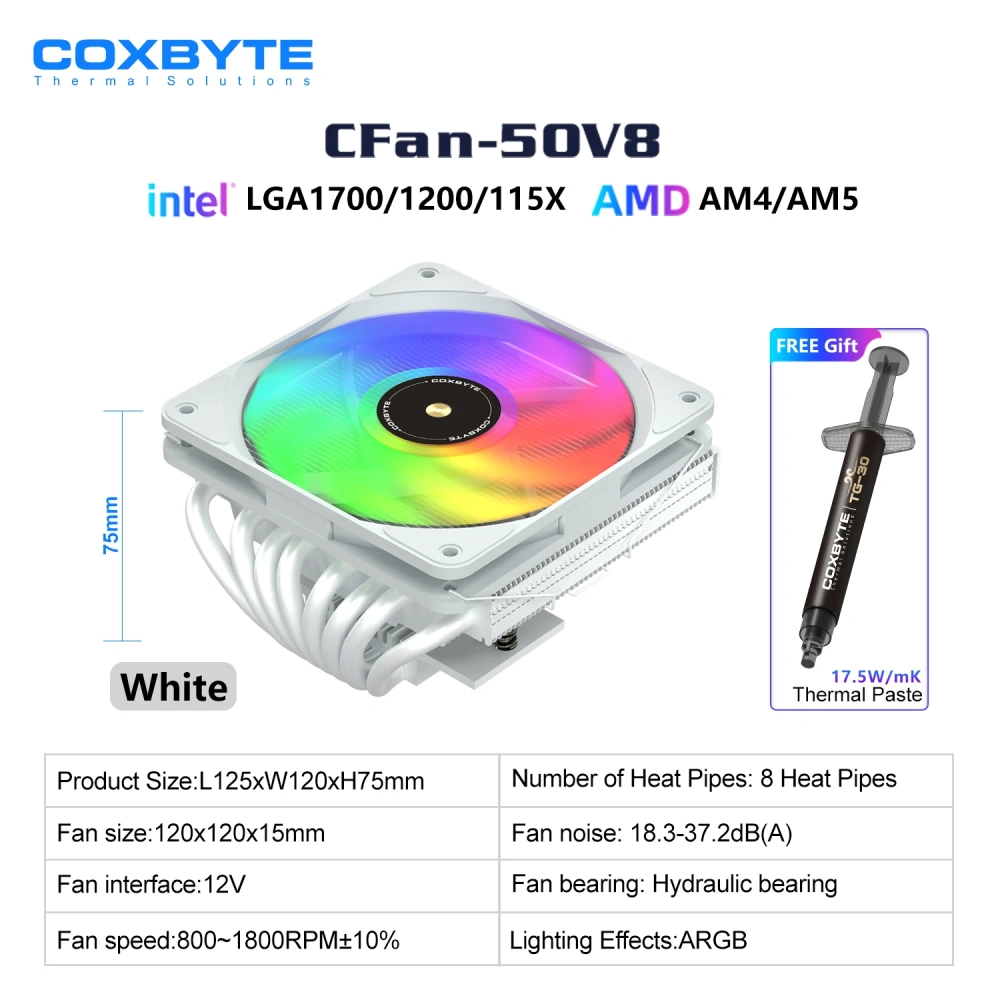

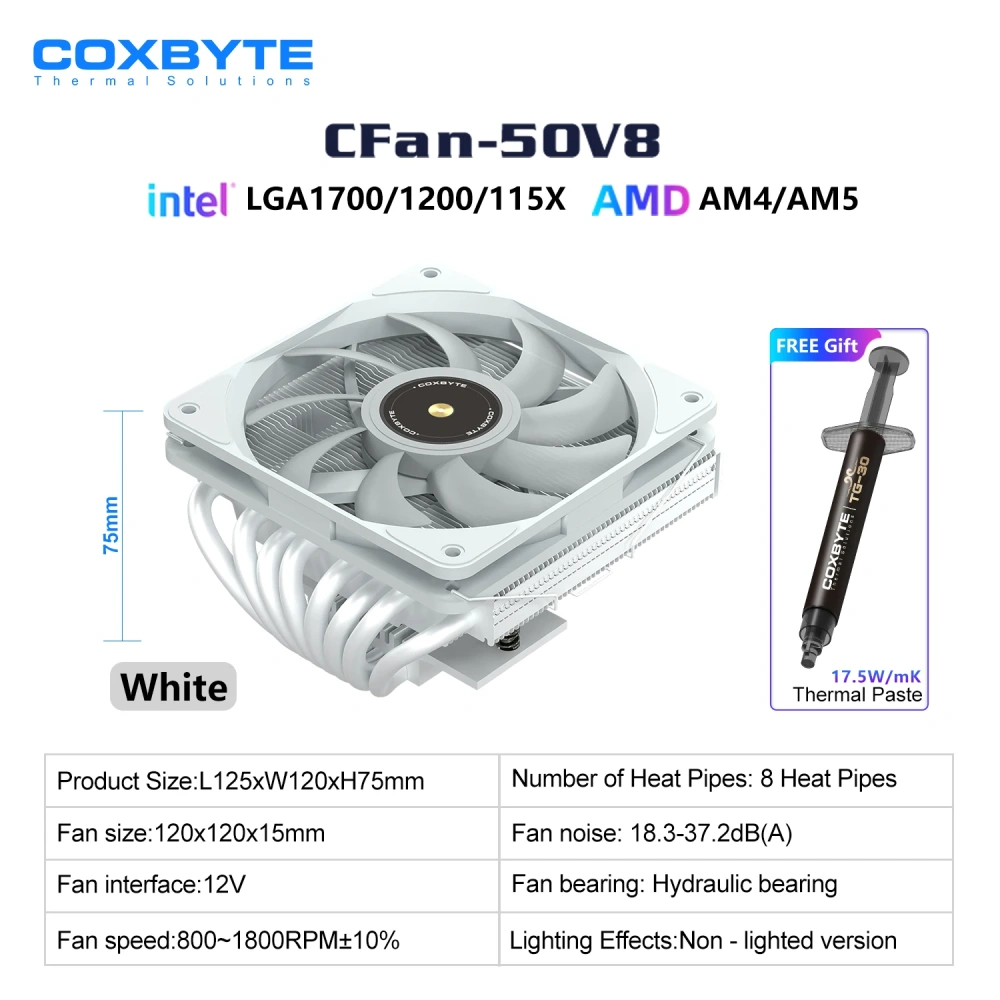

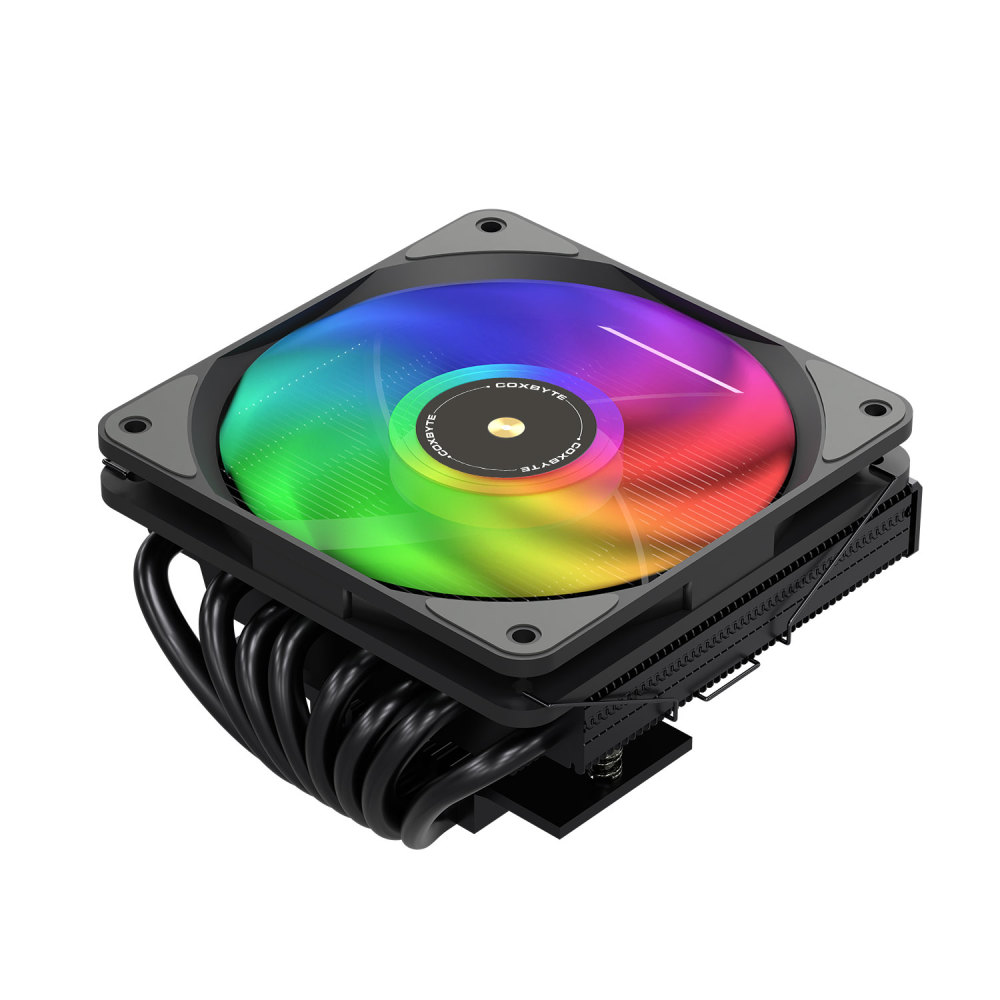

CFan-50V8

Key Features

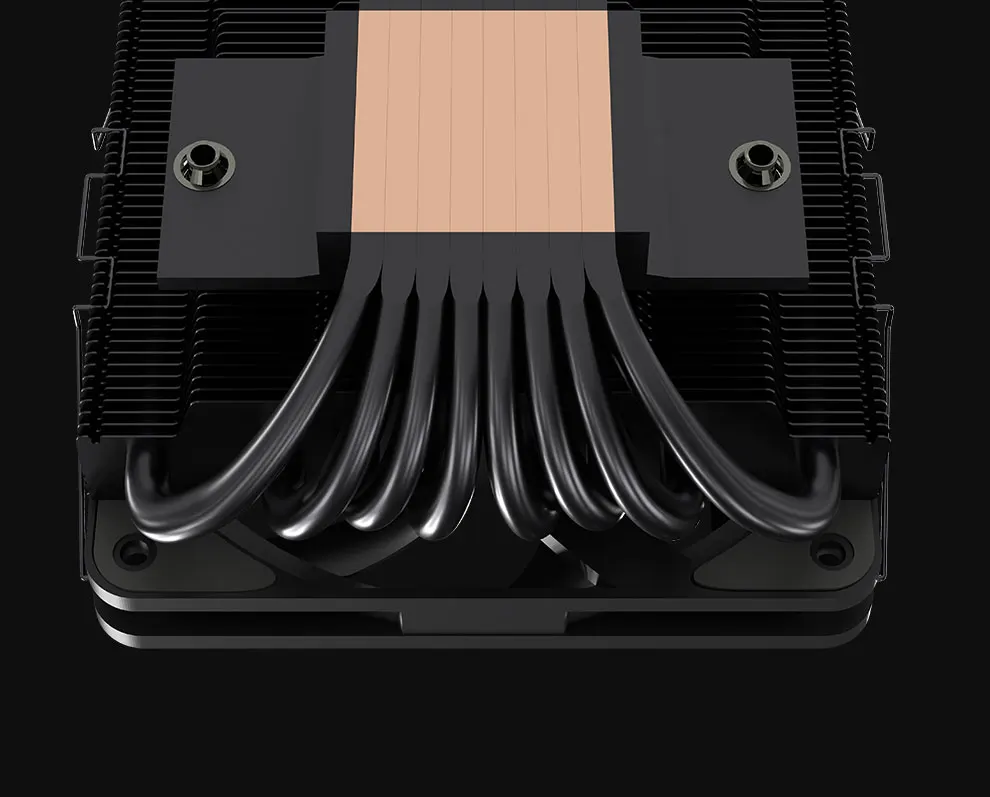

• Top-flow CPU air cooler with 8 high-efficiency heat pipes

• Up to 180W cooling capacity for high-performance CPUs

• 120 × 120 × 15 mm slim fan for efficient airflow and broad compatibility

• PWM 4-pin fan connector for automatic temperature-based speed control

• Fan speed range: 800–1800 RPM ±10%

• Low-noise operation from 18.3 to 37.2 dB(A)

• FDB bearing for stable operation and long service life

• Available in non-LED and 5V 3-pin ARGB versions

• ARGB version supports AURA SYNC and customizable lighting effects

• Compact 125 × 120 × 75 mm cooler design

• Compatible with selected Intel, AMD, and Xeon platforms

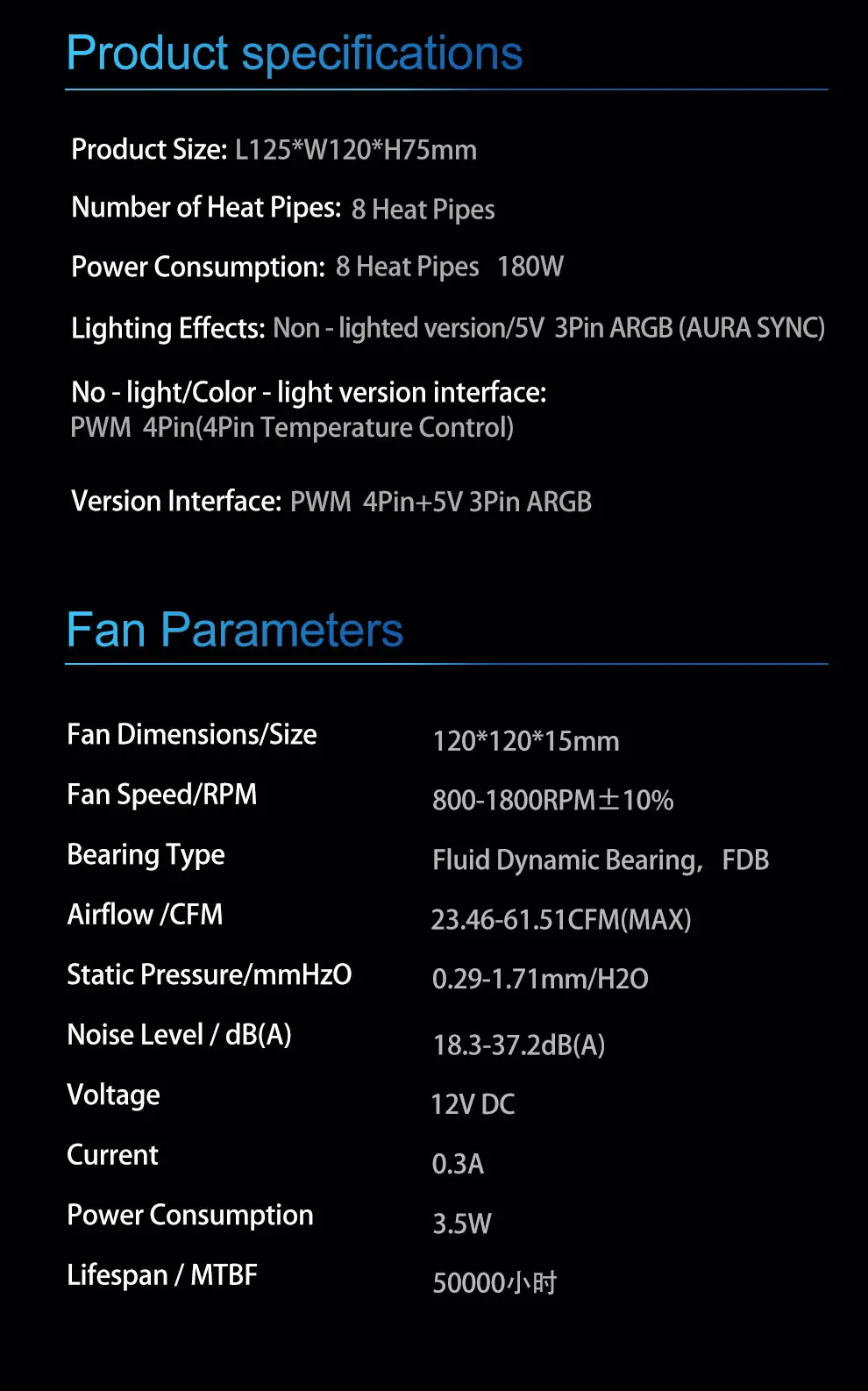

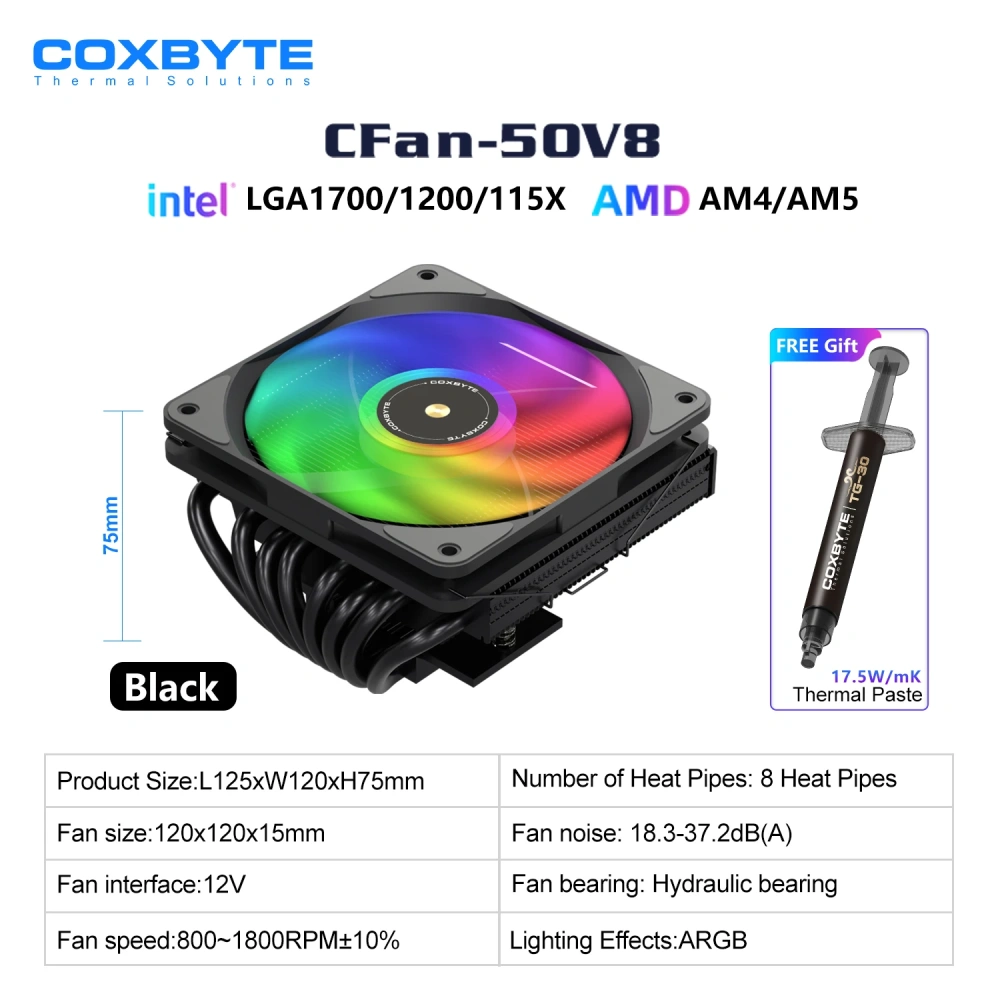

Fan and Cooler Specifications

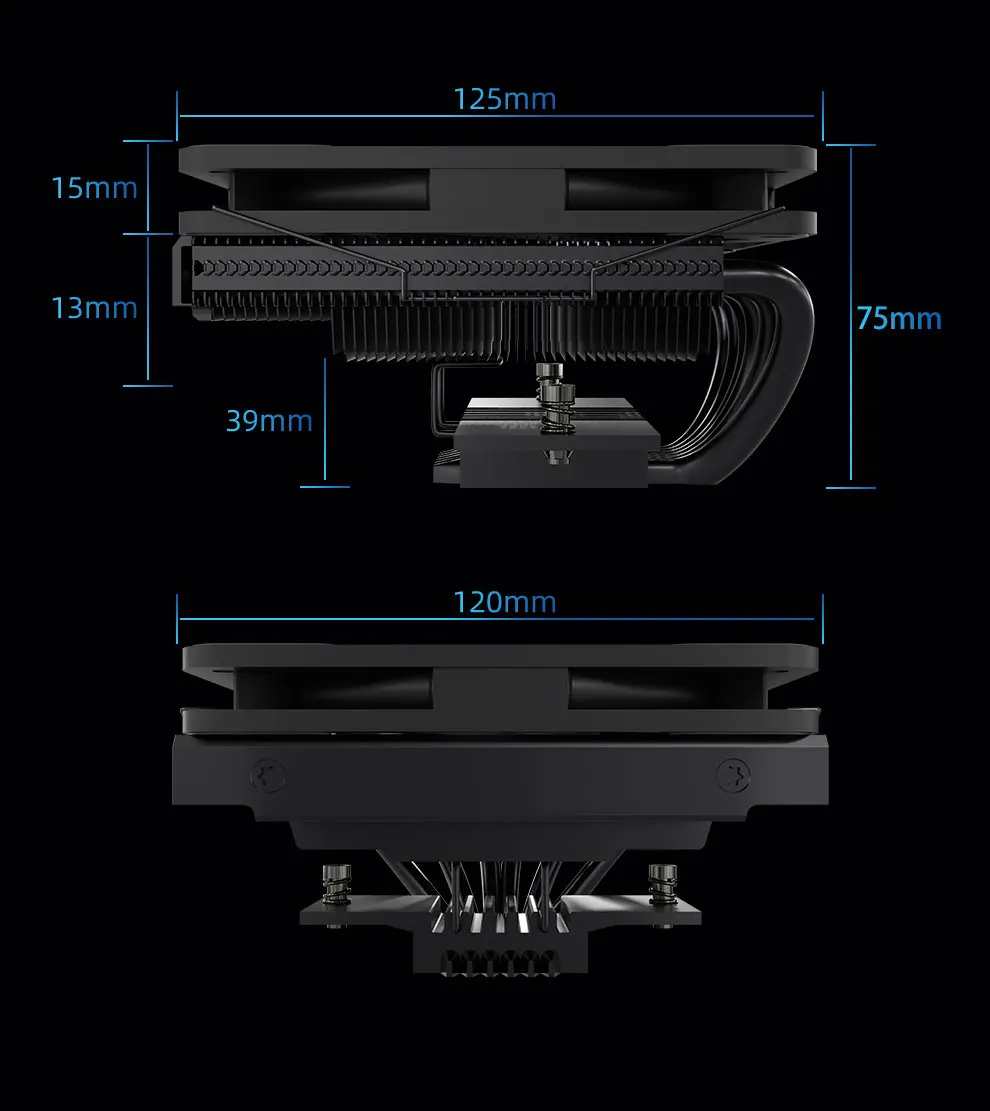

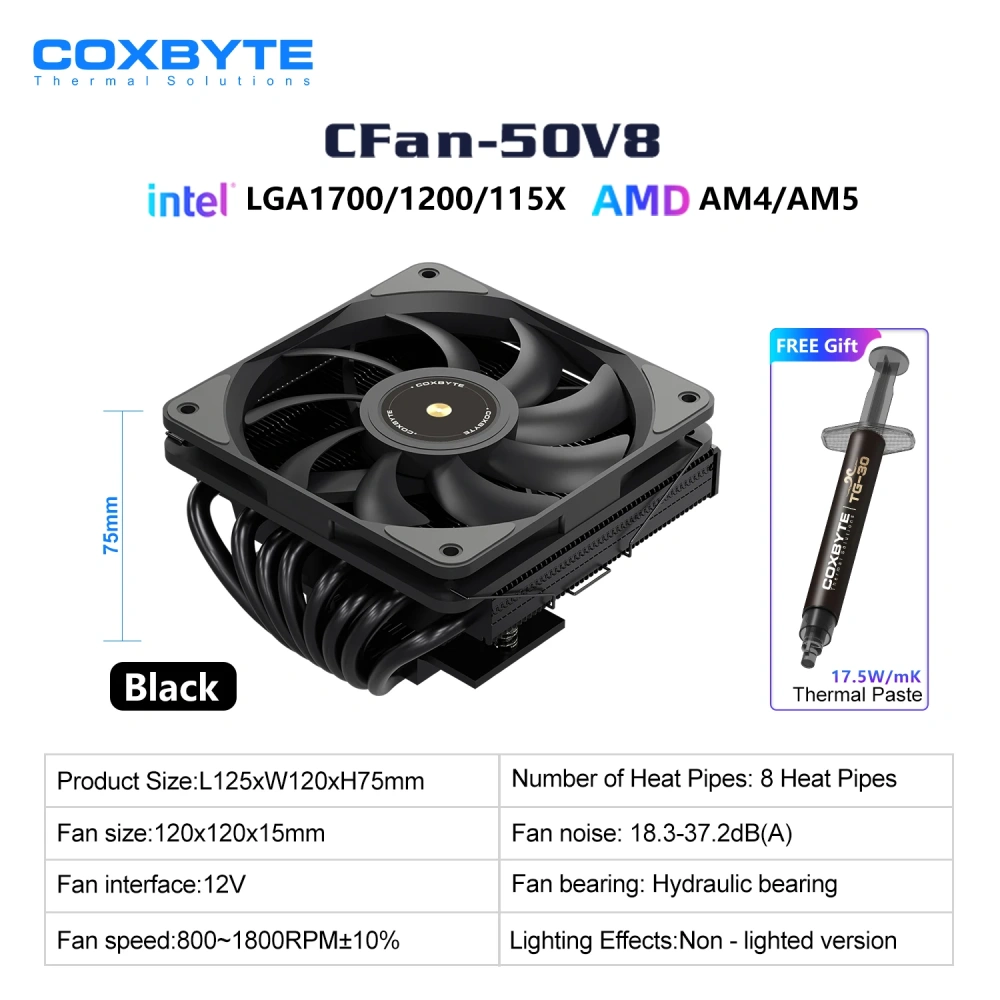

• Cooler Dimensions: 125 × 120 × 75 mm

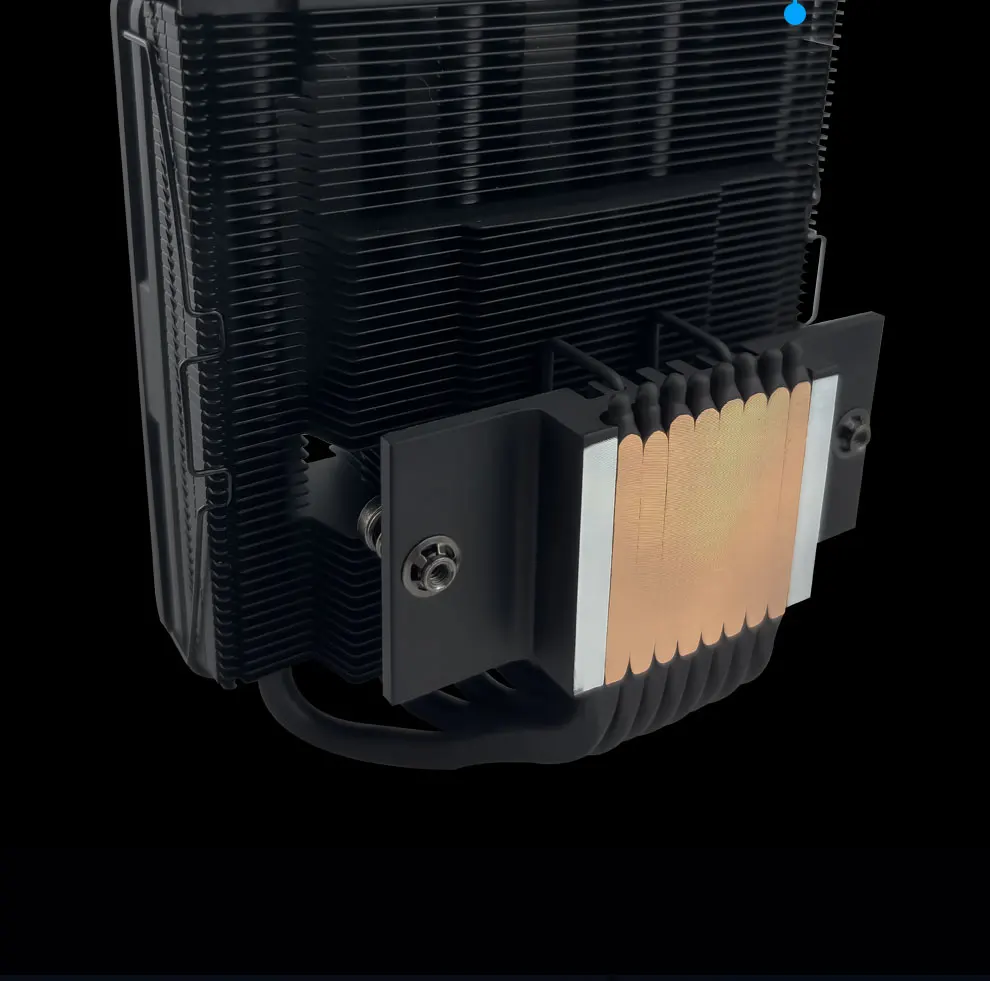

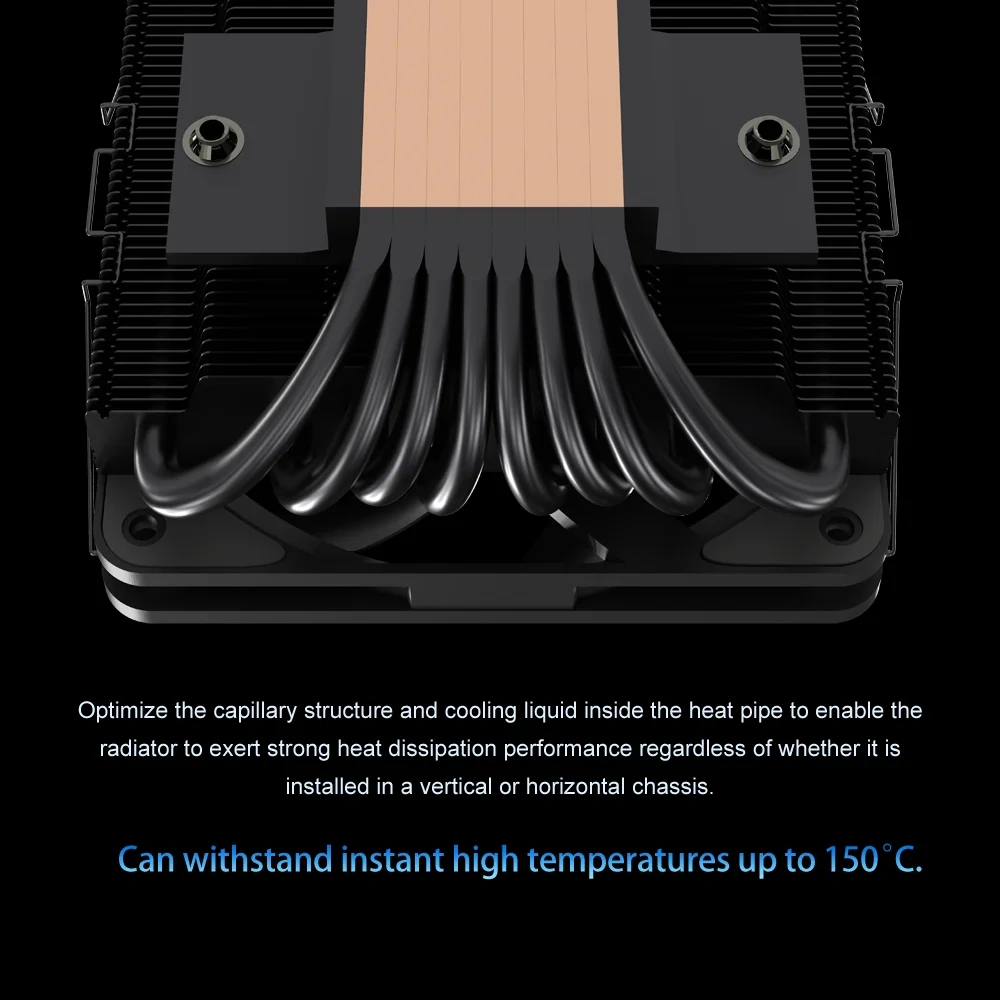

• Heat Pipes: 8

• Cooling Capacity: Up to 180W

• Fan Dimensions: 120 × 120 × 15 mm

• Fan Speed: 800–1800 RPM ±10%

• Bearing Type: Fluid Dynamic Bearing (FDB)

• Airflow: 23.46–61.51 CFM

• Static Pressure: 0.29–1.71 mmH₂O

• Noise Level: 18.3–37.2 dB(A)

• Rated Voltage: 12V DC

• Rated Current: 0.3A

• Power Consumption: 3.5W

• Fan Life / MTBF: 50,000 hours



Compatibility

• Intel: LGA1700, LGA1200, LGA1151, LGA1150, LGA1155, LGA1156, LGA1356, LGA1366

• AMD: AM4, AM3, AM3+, AM2, AM2+, FM1, FM2

• Xeon: E5, X79, X99, LGA2011, LGA2066

Compatibility Note: LGA775 is not supported. The rectangular hole position of the LGA2011 platform is not supported.
