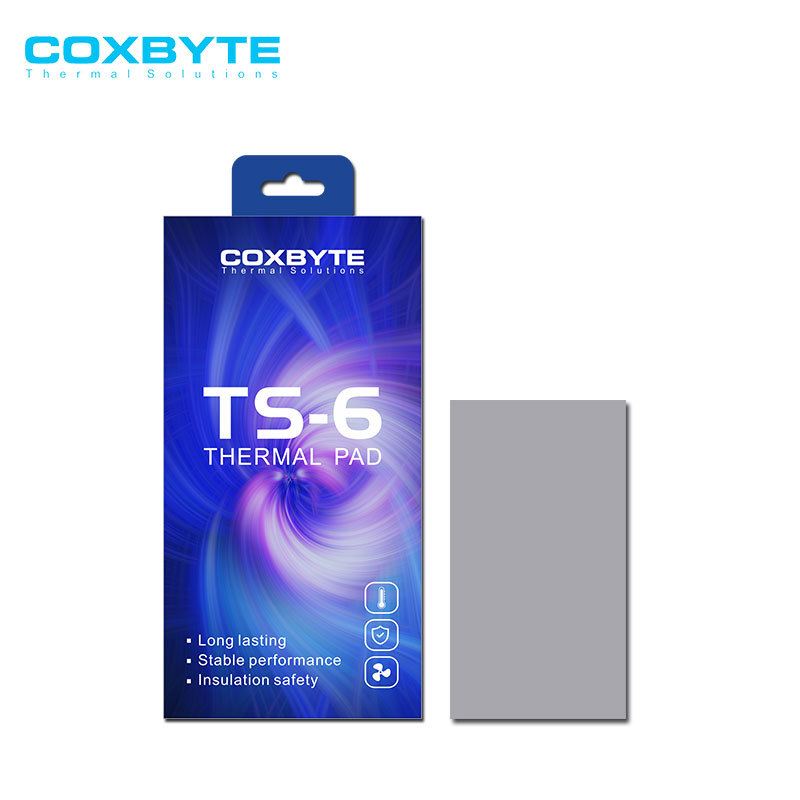

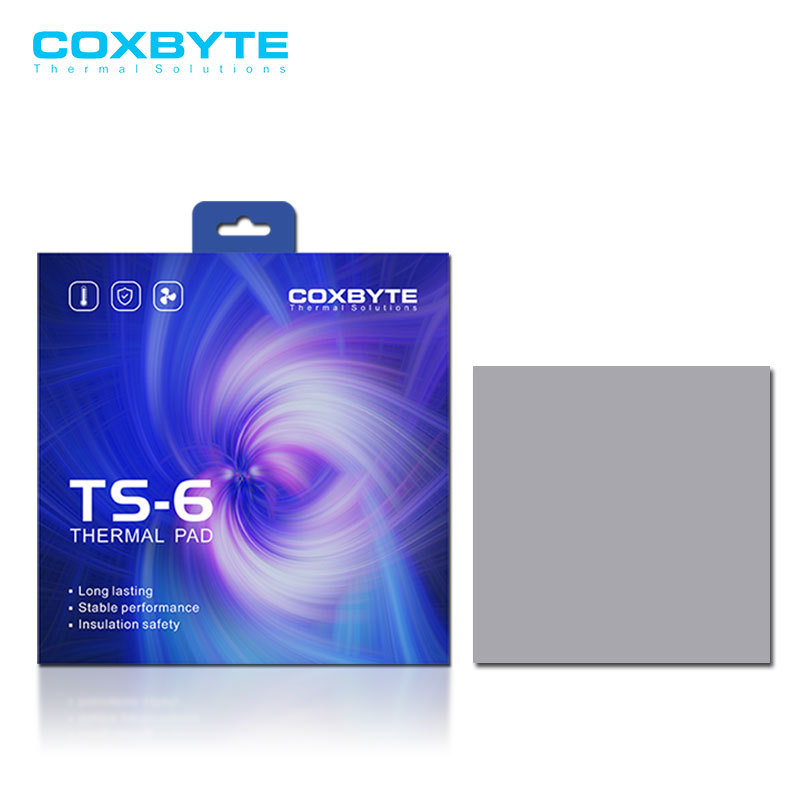

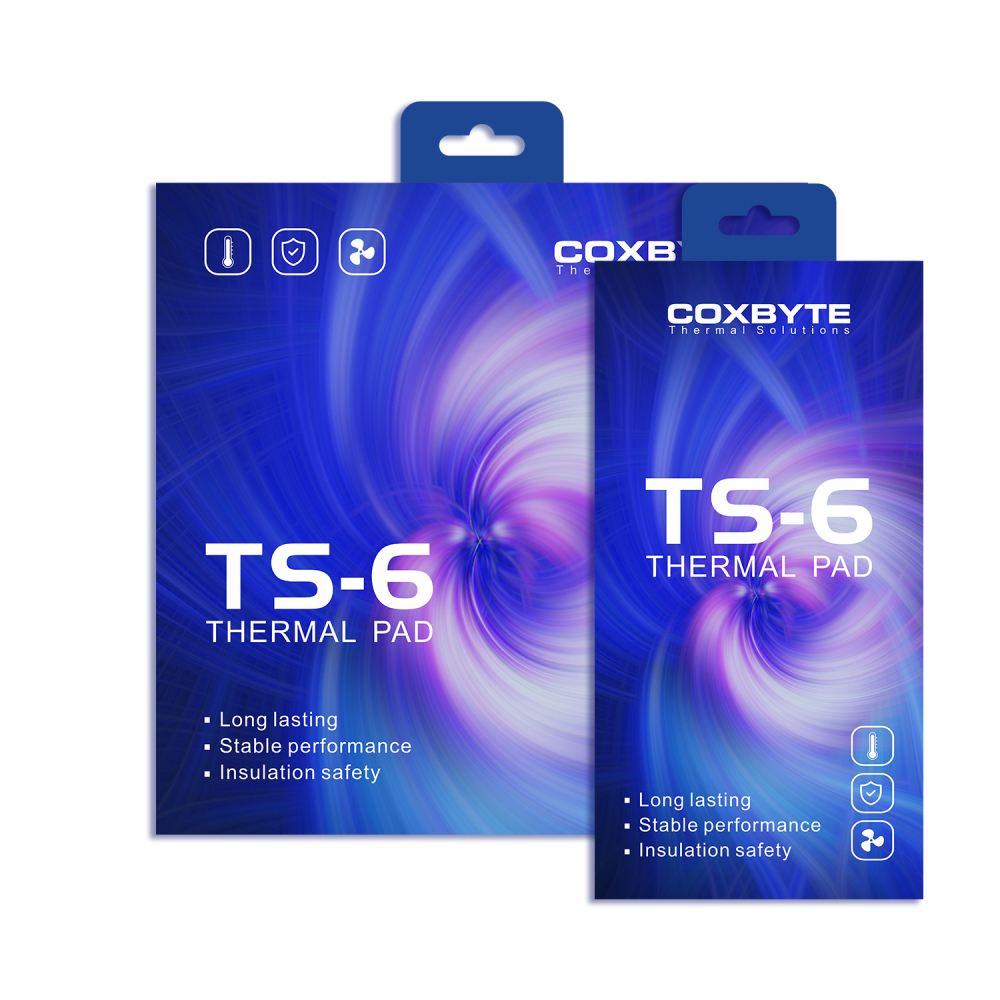

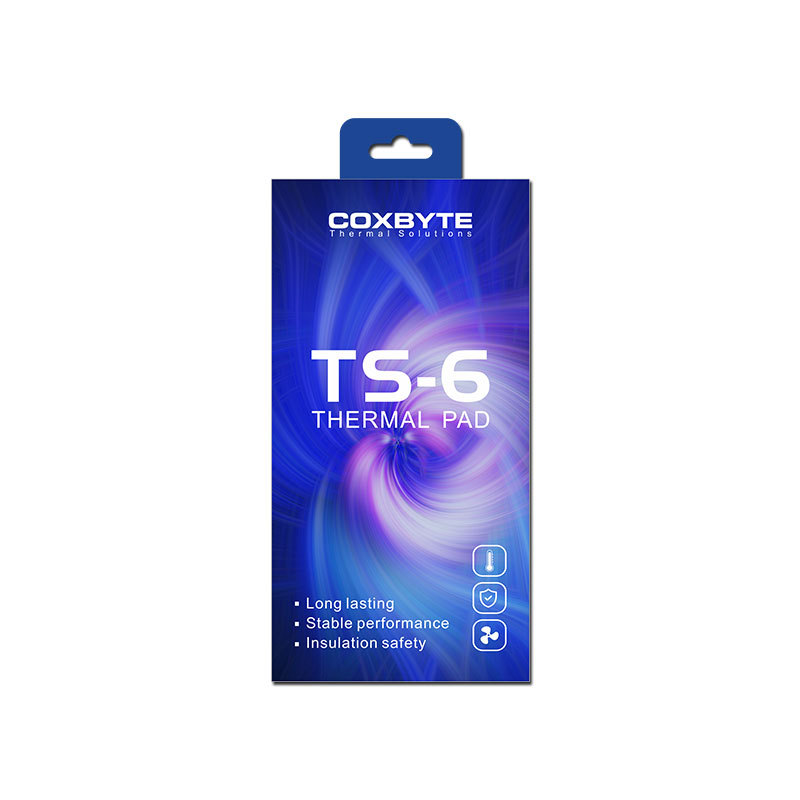

TS-6 Thermal Pad

Key Features

• High thermal conductivity of 16 W/m·K

• Soft silicone material for effective gap filling

• Electrically insulating under normal operating conditions

• No thermal grease or copper sheet required

• Easy peel-and-apply installation

• Multiple thickness options from 0.5 mm to 3.0 mm

• Operating temperature range: -50°C to +250°C

• Grey color for a clean and professional appearance

• Suitable for long-lasting and stable thermal performance

• Designed for laptops, video memory, motherboards, SSDs, M.2 devices, ICs, and more



Product Specifications

• Product Model: TS-6

• Material: Silicone Thermal Pad

• Thermal Conductivity: 16 W/m·K

• Color: Grey

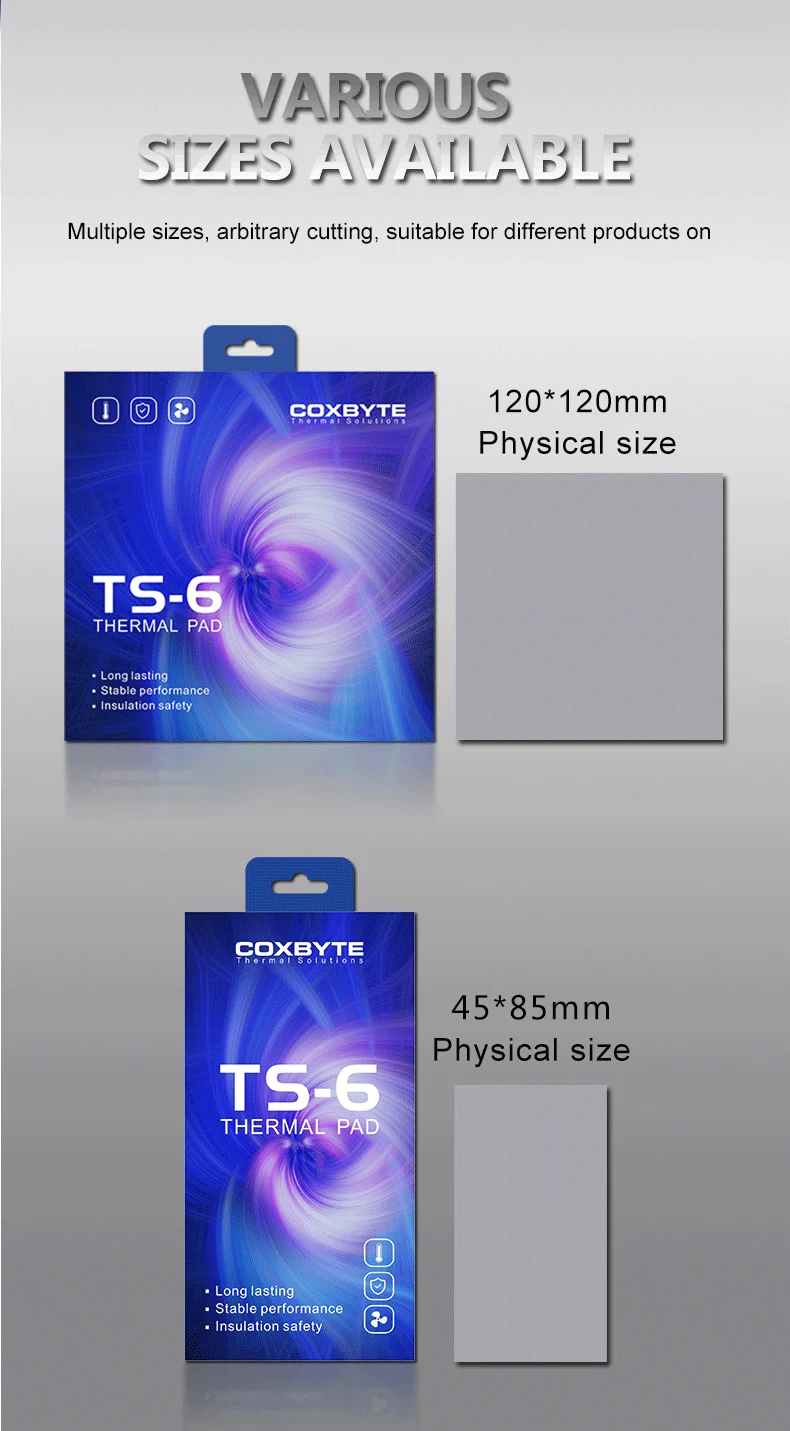

• Available Thicknesses: 0.5 mm / 1.0 mm / 1.5 mm / 2.0 mm / 2.5 mm / 3.0 mm

• Operating Temperature: -50°C to +250°C

• Hardness: 30–55 Shore C

• Electrical Property: Electrically insulating under normal conditions



Typical Applications

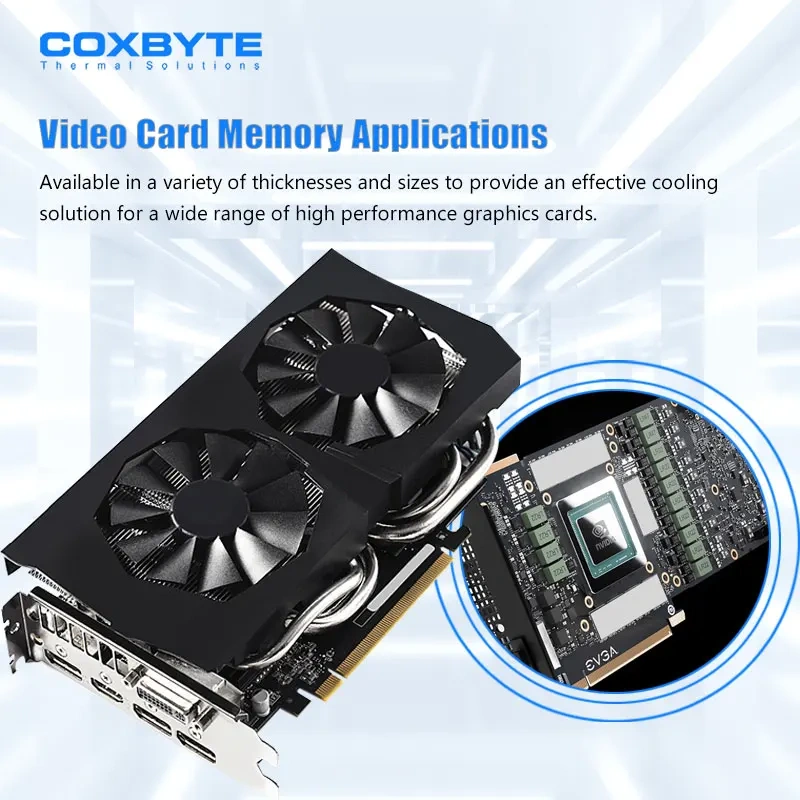

• Video memory / VRAM

• Motherboards

• Northbridge and southbridge components

• SSD and M.2 devices

• Integrated circuits and power components

• Laptop cooling systems

• Electronic devices requiring thermal gap filling

• PC and hardware cooling upgrades

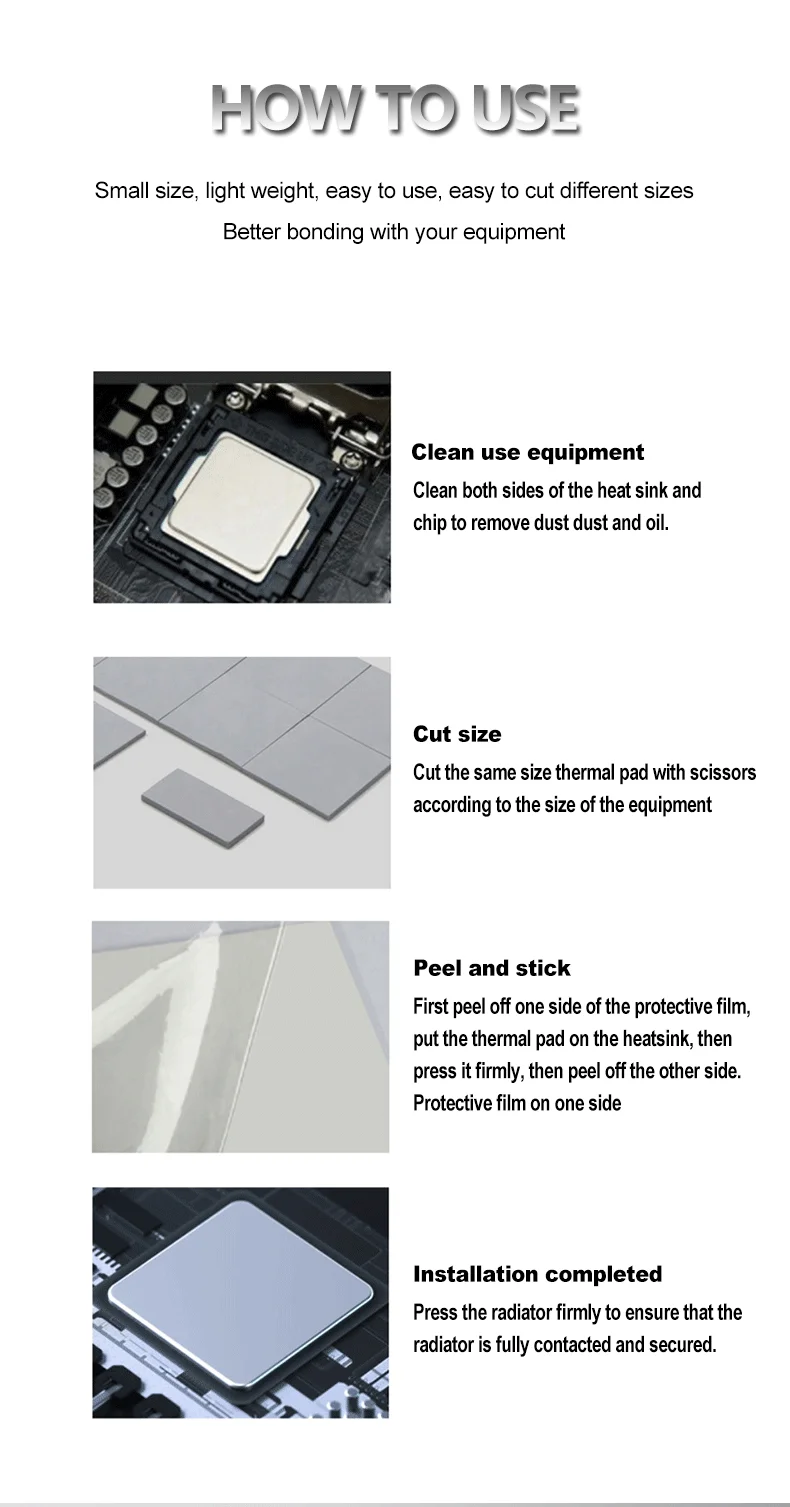

Installation Instructions

1. Select the appropriate thermal pad thickness.

2. Clean the contact surfaces and remove dust or residue.

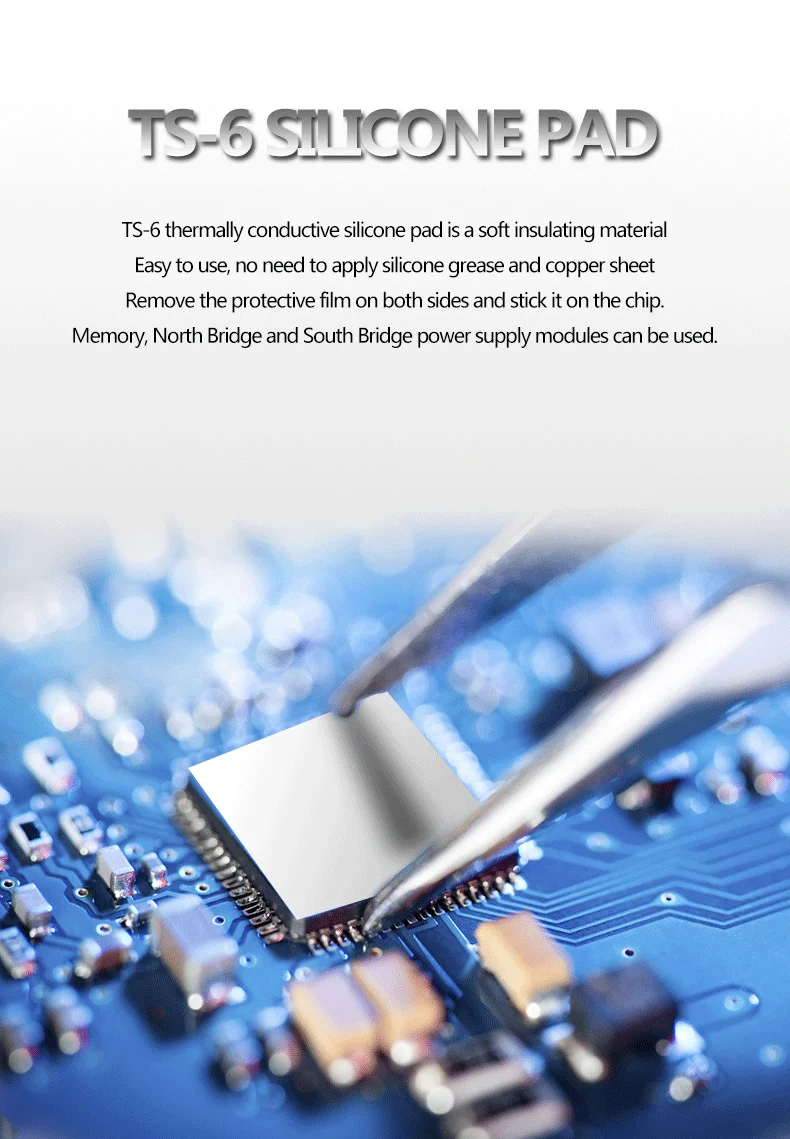

3. Remove the protective film from one side.

4. Apply the pad evenly to the target component.

5. Remove the remaining protective film.

6. Install the heat sink and ensure sufficient contact pressure.
